Azimut Atlantis 48

Forseti - Completed Works

- Engine maintenance was done. Oil, oil filter, fuel filter, and belt were replaced.

- Generator maintenance was done. Oil filter, fuel filter, and impeller were replaced; condenser repair was done.

- Turbos were disassembled, all maintenance was done, and smoke leaks were fixed.

- Maintenance was performed on the starter and charging dynamos.

- Outboard motor maintenance was done. Oil, oil filter, spark plug, impeller, tail oil, and steering cable were replaced.

- Propeller balancing and alignment were done, and the housing was repaired.

- Refrigerators were serviced, and the seawater pump was repaired and installed.

- Air conditioning maintenance was done, and gas control was adjusted.

- The gangway was serviced, and the card was replaced.

- The toilet was serviced, and the 24V clean water valve block and clean water tank level float were replaced.

- Water leaks in the shower line at the stern were fixed.

- The windshield washer system was repaired.

- The broken propellers of the bow thruster were replaced using original Sidepower spare parts. In addition, the roller, carbon brush holder, and carbon brushes were replaced.

- Hydraulic sealing work was performed on the stern platform lock pistons, and the grease fittings were renewed.

- The collector was repaired with a lathe.

- All anodes were replaced.

- The stern flap electromechanical pistons were removed and replaced with new ones, the broken feet were renewed, leak-proofing was ensured, and the electronic system of the flaps was disabled and fixed.

- The charger electronics were repaired.

- The air conditioning seawater chrome pump was replaced.

Length overall: 15.94m
Beam overall: 4.35 m
Beam: 4.30 m
Draft: 1.18m
Height Above Waterline: 3.35m
Keel: V-shaped with deadrise angle at transom 15°
Displacement: 18.23 t
Engine(s): 2 x 600 HP (442 Kw) Cummins QSC 8.3, Working Hour(s): 1476/1478 (23.12.2022)
Max Speed: 35.00 knot
Cruising Speed: 32.00 knot
Fuel Capacity: 1700 lt
Water Capacity: 420 lt
Holding Tank Capacity: 150 lt
Cabins: 2
Berths: 4+2
Heads: 2

Hull Material: VTR/GRP
Interior Designer: Neo Design & Azimut Yachts
Exterior Styling & Concept: Neo Design
Builder: Azimut Yachts (Italy)

INTERIOR
Owner's cabin with bathroom
VIP cabin
VIP cabin bathroom / day bathroom
Dining area/kitchen

HULL AND DECK
Anchor 30 kg and anchor chain made of galvanized steel (length 120m, galvanized was renewed in 2021)
VHF antenna
Horn
Stainless steel bollards amidships (2 pcs.)
Stern bollards made of stainless steel (2 pcs.)
Stainless steel bow cleats (2 pcs.)
Foredeck hatch with mosquito net and sun shade
Nasal pads for sunbathing
Fixed panoramic windows in the owner's cabin and VIP cabin
Plexiglass side windows
Anchor compartment with drainage system
Rigid automatic sliding roof made of fiberglass, with fabric surface
Navigation lights
Anchor rollers made of stainless steel
Portholes with steel edging and mosquito nets
Tempered glass windshield
Stern cleats made of stainless steel (2 pcs.)
Nasal cleats made of stainless steel (2 pcs.)
Teak surface in the bow and side aisles
Cup holders and storage compartments
Stainless steel handrails
Fiberglass radar arch with steel supports for lights, flagpole, VHF antenna and horn
Fuel filler neck with flame and splash protection system
Steel fuel tank caps (2pcs)
Steel water tank caps
Windshield wipers with glass washer
Steel handles
Anchor winch 1500kW with chain washer system and control buttons in the deck

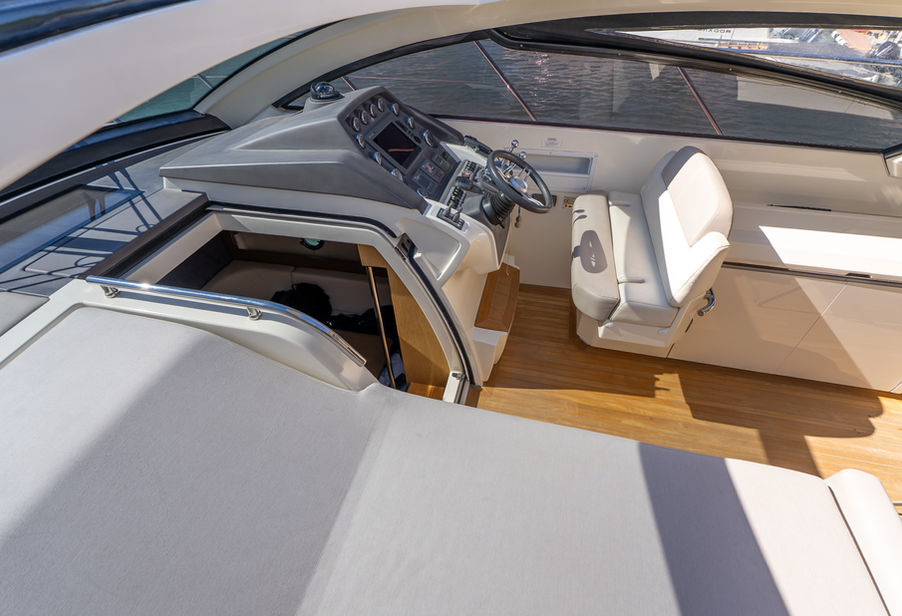

COCKPIT
Access to the engine compartment through the hatch
Plexiglas steel framed aft access doors with Atlantis logos (2 pcs.)
L-shaped sofa with a storage compartment for a life raft
Shower on the swim platform
Refrigerator with a capacity of 75 l
Waterproof storage compartments
LED lights
Main illumination - halogen lamps
Cockpit kitchen with steel sink and faucet
Teak floor in cockpit and swim platform
Aft sunbathing area with adjustable backrest and cup holders
Socket, 220V
Water intakes in the body
USB/Bluetooth System with waterproof speakers (x2)
Manually retractable swim platform ladder
Sliding transparent door in white Plexiglass, for access to the lower deck
Table on a steel fixed support
Steel handles
Shore power connector 220V - 50A

NAVIGATION TOOLS
Emergency bilge pump
Rudder position indicator
magnetic compass
Electronic engine control knobs
Tachometer
Fire safety system status indicator
Trim tab indicator
Waterproof switches
Water level indicator in the tank
Fuel gauge
Oil pressure gauge
Engine emergency stop button
Shore power indicator
Coolant temperature sensor
Display: echo sounder with alert system, trip odometer, water temperature
Voltmeter
Radio unit with speaker
Hydraulic steering system, with adjustable steering wheel made of stainless stell, trimmed with genuine leather

DECOR
Exterior cushions in fast-drying, closed-cell foam with stain-resistant synthetic fabric upholstery
Interior cushions with removable covers made of natural fabric
Upholstered headboard in microfiber
Furniture, doors and walls in lacquered wood
Wall upholstery with microfiber
Carpeted floor
Microfibre ceiling upholstery
Aluminum Venetian Blinds

DINNER ZONE
Door to the VIP / day bathroom
Wooden sofa base with drawers and storage compartments
Sofa upholstered in natural fabric
Fire extinguisher, 1 kg
Natural wood steps (oak)
LED and halogen lighting
Light switches
Portholes in stainless steel edging, with mosquito nets (2 pcs.)
Cupboards for dishes
Table in oak wood with folding top and fixed steel base
AC/DC electrical panel with thermal magnetic breakers
Stainless steel handrails near steps

GALLEY (KITCHEN)
Fire extinguisher, 1 kg
Exhaust fan
Combined microwave oven / grill, 220V
Built-in refrigerator with a volume of 100 l, 24V
LED lightening
switches
Steel sink with faucet
Portholes with mosquito nets and stainless steel edging (2 pcs.)
Cupboards, under-worktop storage and pantry
Glass ceramic hob with 4 burners
Laminated work surface
Socket,S220V
OWNER'S CABIN

Built-in wardrobe with internal lighting and mirrors on the doors (2 pcs.)
Study / TV space in front of the bed
Sofa to starboard
Night table with opening top (2 pcs.)
Fire extinguisher, 1 kg
Fixed side window
Halogen lighting
Switches
Double bed with mattress, duvet and pillows
2 x reading lamps
Night illumination
Lockers on the port side
Portholes in steel edging, with mosquito nets (2 pcs.)
Socket, 220V
Mirror at the head of the bed
Bed base with storage drawers
Microfiber headboard upholstery
Open shelves

OWNER'S BATHROOM
Separate tempered glass shower with seat and shelves
Teak grating on the floor
Halogen lighting
Switches
Faucet and shower in the shower cabin
Cabinet with sink and faucet
Porthole in steel edging, with mosquito net
Wall cabinet with mirror
Socket, 220V
Set of bathroom accessories
Electrical flushing system for fresh water in the toilet

VIP CABIN
Door to VIP / day WC
Built-in wardrobe with internal lighting and mirrors on the doors (2 pcs.)
Fire extinguisher, 1 kg
Side windows, 2 pcs.
Halogen lighting
Light switches
Double bed with mattress, duvet and pillows
Reading lamps (2 pcs.)
Night illumination
Lockers and shelves on the port side
Portholes in steel edging, with mosquito nets (2 pcs.)
Socket 220V
Mirror in the bow, at the head of the bed
Fiberglass bed base with storage drawers
Microfiber headboard upholstery
VIP BATHROOM

Separate tempered glass shower cubicle
Teak grating on the floor
Halogen lighting
Light switches
Shower faucet with hose
Cabinet with sink and faucet
Porthole with steel frame and mosquito net
Wall cabinet with mirror
Socket, 220V
Set of bathroom accessories
Electrical flushing system for fresh water in the toilet

ELECTRICAL SYSTEMS
Battery for generator 12V - 100Ah (1 pc.)
Batteries for engines 12V - 100A / h (2 pcs.)
Service batteries 12V-100A/h (2 pcs.)
Automatic charger 24V-80A/h
Charger for generator 12V-12A/h
Ventilated battery compartment
The battery disconnect is located on the electrical panel in the dining area
Battery parallel operation is in the control room
Switches for power supply from the generator / shore power (2 pcs.)
Digital voltage / electricity consumption indicator for AC and DC systems
Incoming electricity polarity sensor
Inverter 24V/13V for 12V devices (walkie-talkie, audio system, cigarette lighter socket, etc.)
Generator 11.5kW, Köhler
Separate circuit breakers and switches for shore power/generator

WATER SYSTEM AND PUMP
Bilge alarm for cabins and engine compartment with light and sound signal at the helm station
Boiler, 30 l
Shore fresh water connection system
Automatic fresh water pump in the engine compartment with filter and cold/hot water cut-off valves
Automatic electric pump for indoors (1 pc.)
Manual bilge pump for interior spaces (1 pc.)
Manual bilge pump for engine compartment
Separate bilge pump for pumping excess oil and fuel (1 pc.)
Electric bilge pump in the engine compartment with automatic and/or manual control (2 pcs.)
Fresh water tank 420 l
Gray water tank (capacity 2 x 9 l) with electric drain pump
Emergency bilge pump in the engine compartment

FUEL SYSTEM
Electric valves on the fuel system, for emergency shutdown of the fuel supply
Fuel filters-sumps (2 pcs.)
Fuel tanks made of stainless steel, with fuel level sensors (capacity 2 x 850 l, total 1700 l)

ENGINE COMPARTMENT
Access through hatch in cockpit
Ceiling lighting with portable lamps
Fire fighting system (automatic and manual)
Exhaust and ventilation system, thermostatically activated
Removable panels in the aft cockpit area for easy engine maintenance
Socket, 220V
Anti-corrosion (cathodic) protection of fuel tanks, hoses, etc.
Stainless steel ladder
Underwater exhaust system
Care valve fuses

PROPULSION SYSTEM / MECHANICAL EQUIPMENT
Steel shafts for screws (diameter 60 mm), 2 pcs.
5-bladed propellers (2 pcs.)
Hydraulic trim tabs (2 pcs.)
Propeller shaft bracket, diameter 60 mm (2 pcs.)
Steel rudders (2 pcs.)
Shaft sleeve, diameter 60 mm, (2 pcs.)
Gray and black water tanks with level sensors and electronic drain system (capacity 150 l.)
Bow thruster (8.4 hp, diameter 185 mm)
Hydraulic swim platform (max. load capacity 350 kg)
Nose sun pads with cover
Cockpit cover with side passage and removable transparent “windows”
Electric spotlight
Teak cockpit table
Teak side walkways
FUSION AUDIO/VIDEO multimedia system (in cockpit, dinette and master cabin), includes Hi-Lo retractable TV system
Air conditioning 30.000 BTU in cabins
Air conditioning 46.000 BTU in saloon
Stern thruster (8.4 hp, diameter 185 mm)
Cockpit chair
Cockpit cover with side passage and removable transparent “windows”
Cover for helm seat and dashboard
Cushion covers for sunbathing aft
Electric spotlight
Teak cockpit table
Teak side walkways
Electro-hydraulic boarding ladder
4 pieces underwater lights (blue - white two colors, Seablaze)
Wooden stands for the tender on the platform
A set of cutlery, dishes and glasses for 6 persons
Folding sofa / bed in saloon
Wooden floor in the dining area on the lower deck (walnut)
Additional fridge in galley (100 liters)
BBQ in cockpit
Raymarine E125 Hybrid Touch Chartplotter, Raymarine p70R Autopilot, Raymarine RD418D 18” 4kW Radar
Anchor chain counter at helm station
Hi-Lo retractable system for TV in cockpit
FUSION AUDIO/VIDEO multimedia system (includes 4 stereo speakers, LCD TV)
TV system with receiver in dining area
TV system with receiver in dinette and owner's cabin
